Description
Summary:

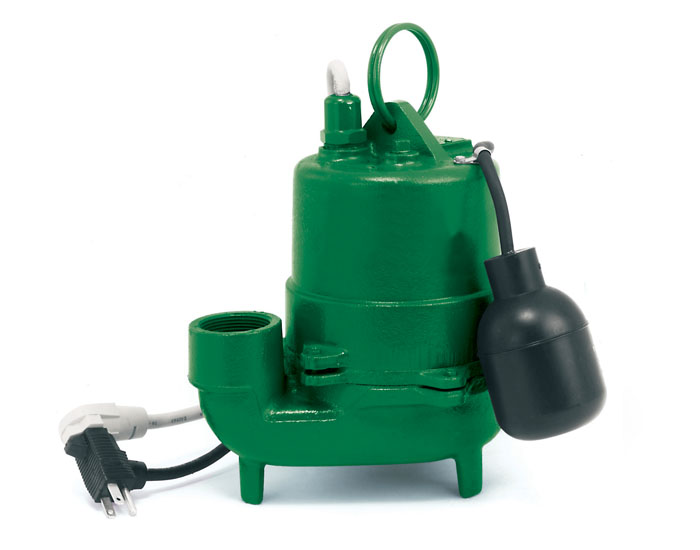

The Myers S40HT series effluent pump is a small, rugged, submersible, cast iron pump with a non-clog vortex impeller and solids handling capability to 3/4″.
- All cast iron housing, volute case, and impeller resists the most extreme corrosive environments
- Rugged-built, oil-filled motor for continuous bearing lubrication and maximum heat dissipation
- Heat sensor overload protection with automatic reset when motor cools to a safe operating temperature
- Lower ball bearing eliminates sleeve bearing wear and reduces motor wear
- Non-clog vortex style, ejector vanes for seal protection
- Allows easy disassembly after extended service
- Prevents oil loss from – and moisture protection for – motor
- Permanently lubricated for long life
- Heavy-duty lift-out ring
Details:
| Pump # | S40HT-11P-01 |
| Housing Material | Cast Iron |
| Impeller Material | Recessed Vortex Cast Iron |
| Volute Material | Cast Iron |
| Horsepower | 1/3 |
| Maximum Capacity | 45 |
| Max Head | 21 |
| Discharge | 1-1/2″ |
| Solids Handling | 3/4″ |
| Voltage | 115 |
| AMPS (Max) | 13.0 |
| Phase | 1 |
| Cord Length | 20′ |
| Switch | Tethered Float w/ Piggyback Plug |
