Description
Summary:

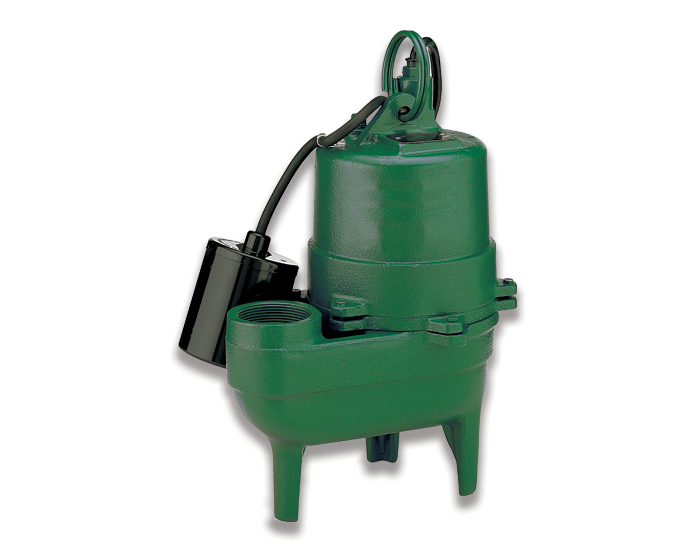

Cast Iron Submersible Sewage Pump – MWS5 Series
Key Features:
- Solids Handling– 2” spherical capabilities.
- Overload Protection– Built-in thermal overload with automatic reset.
- Bearing and Mechanical Seal– Permanently lubricated for long life.
- Stainless Steel Hardware– Allows for easy disassembly after extended service.
- Serviceability– Heavy-duty lift-out ring.
- Controls– Standard controls available for automatic operation.
- Cord Design– In-field replaceable 50’ cord available, 115 volt only.
Details:
| Brand | Myers |
| Mfg. Number | MWS550110T |
| Series | MWS5 |
| Product Type | Sewage pump |
| Application | Sewage/Dewatering/Flood Control |
| Operation | Automatic |
| Horsepower | 1/2 HP |
| Voltage | 115 Volts |
| Phase | 1 |
| Frequency | 60 Hz |
| Speed | 1550 RPM |
| Pump Housing Material | Cast iron |
| Impeller Material | Reinforced Noryl |
| Impeller Type | Vortex |
| Maximum Solids Handling | 2″ |
| Discharge Connection | 2″ NPT vertical |
| Maximum Flow | 130 GPM |
| Maximum Head | 18 ft |
| Cord Length | 10 ft |
| Maximum Fluid Temperature | 130°F |
