Summary:

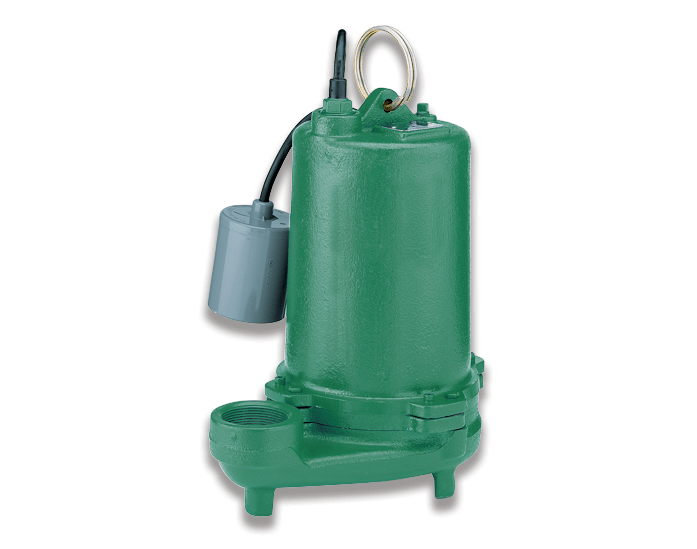

Cast Iron Submersible Effluent Pump – ME7 Series
Key Features:
- Bearing and Mechanical Seal – Permanently lubricated for long life.
- Overload Protection– Built-in thermal overload with automatic reset.
- Cord Design– Prevents oil loss from and moisture protection for motor.
- Serviceability– Heavy-duty lift-out ring, field serviceable.
- Solids Handling– 3/4” spherical capability.
- Stainless Steel Hardware– Allows for easy disassembly after extended service.
- Controls– Standard controls available for automatic operation.
- Float– Mechanical (non mercury).
Details:
| Brand | Myers |
| Mfg. Number | ME750120M |
| Series | ME7 Series |
| Product Type | Sump/Effluent pump |
| Application | Sump/effluent |
| Horsepower | 1/2 HP |
| Voltage | 115 volts |
| Phase | 1 |
| Frequency | 60 Hz |
| Speed | 1550 RPM |
| Design | Submersible |
| Discharge Connection | 1-1/2″ NPT |
| Discharge Position | Vertical |
| Maximum Capacity | 87 GPM |
| Maximum Head | 44 ft. |
| Max. Solid Size | 3/4″ |
| Operation | Manual |
| Impeller | Vortex |
| Impeller Material | Thermoplastic |
| Pump Housing Material | Cast iron/thermoplastic |
| Motor Casing Material | Cast iron |
| Seal Quantity | Single |
| Shaft Seal | Carbon/Ceramic |
| Thermal Overload Protection | Yes |
| Max. Temperature (Intermittent) | 130°F |
| Cord Length | 20 ft. |
