Description

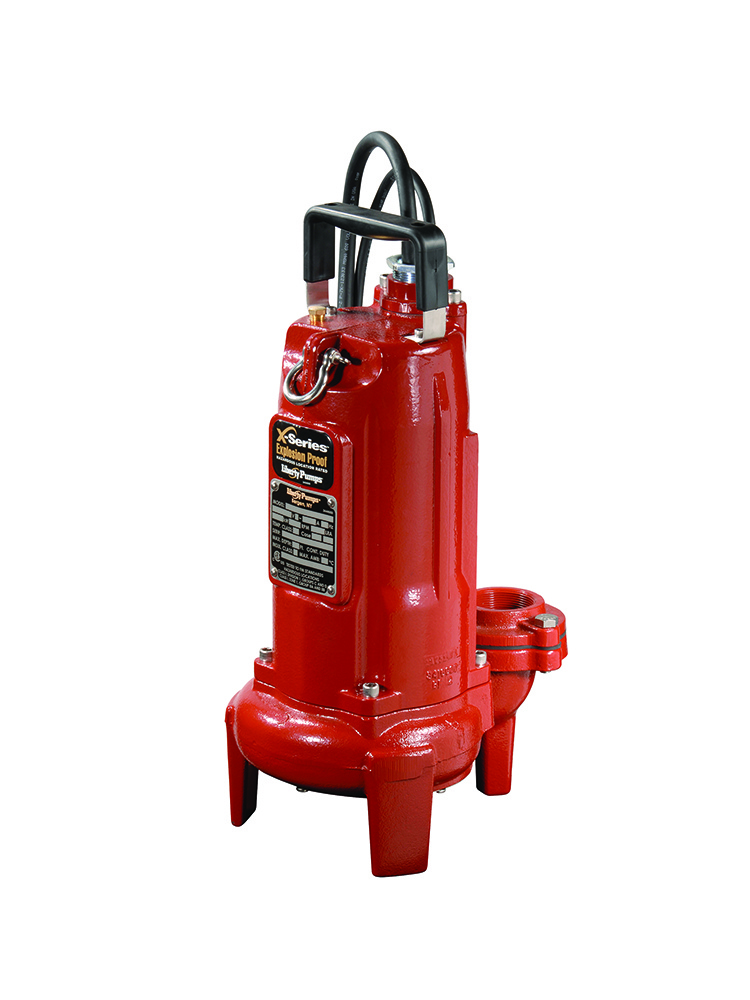

Summary: Liberty’s XLE150-series cast iron sewage pump is an explosion-proof pump for use in hazardous locations. It is Class 1, Division 1 Groups C & D and Class 1, Zone 1 and Group IIA and IIB certified. Providing a dual 2″ or 3″ discharge, 2″ solids-handling, and 2 vane semi-open cast iron impeller. A bronze impeller is optional for this model. Details:
| Brand | Liberty |
| Mfg. Number | XLE152BM-3 |
| Series | XLE150 |
| Product Type | Explosion proof sewage pump |
| Application | Sewage; hazardous locations |
| Operation | Manual |
| Horsepower | 1-1/2 HP |
| Voltage | 208-230 Volts |
| Phase | 1 |
| Frequency | 60 Hz |
| Speed | 3450 RPM |
| Pump Casing | Cast iron Class 30 |
| Maximum Flow | 200 GPM |
| Maximum Total Head | 49 ft |
| Discharge Connection | 2″ NPT or 3″ NPT |
| Maximum Current | 14 Amps |
| Maximum Fluid Temperature | 104°F |
| Impeller Design | 2 vane; semi-open |
| Power Cord Length | 35 ft |
| Impeller Material | Bronze |
| Capacitor Kit | K001585 |
For more specific information, please view the following:
